SF6 Gas Analysis
Welcome to Cambridge Sensotec, where innovation meets reliability! Are you looking for a reliable and efficient SF6 gas analyser that goes above and beyond industry standards? Look no further.

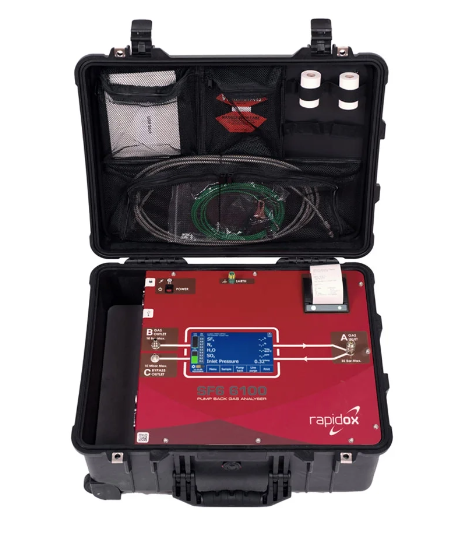

Rapidox SF6 6100 Pump Back Gas Analyser
Product Information
The Rapidox SF6 6100 Pump Back is the latest in fully-automatic gas analysers, designed for controlling and monitoring the quality of SF6 in medium & high voltage gas insulated electrical equipment. Exceptional accuracy and stability are provided when measuring the purity of SF6 gas, through specially selected sensors.
Once connected, the Rapidox SF6 6100 Pump Back samples gas from the electrical equipment automatically or manually, with an inlet auto gas pressure sensing function. A vacuum purge cycle and gas storage system ensures that no air can contaminate the gas sample and that no SF6 gas is able to escape during the testing period.
Further Product Information
SF6 gas pressure in the internal sample compartment is recorded and logged by the analyser. All measured gases are analysed and data-logged simultaneously with only a few minutes required to achieve a stable reading. A powerful 10 bar compressor, with a separate lithium battery power supply, then returns the gas to the electrical equipment at high pressure.
Other measurable gases can include H2O (dew point), SO2, HF, CF4, H2S, CO, N2 & Air. Due to the modular design, a number of configurations are available in order to suit a variety of application requirements.
MAKE PRODUCT ENQUIRYProduct Features
- Easy to operate and configure.
- Housed within a heavy duty IP66 Peli case; inclusive of wheels and handle.
- Supplied with 2m sample hose.
- Total weight of 21kg (without accessories).
- Lithium battery provides up to eight hours of operation.
- Large gas storage bag allows up to five measurements to be taken before pump back is required.
- For SF6 nitrogen users, special nitrogen (N2) display mode is available.
- Pre-programmed with all current IEC and CIGRE test configurations.
- Ability to create customised tests.
- Measurement data can be viewed in real time.
- Data download in an MS Excel compatible format via a USB memory stick.
- Features a 7” (18cm) full colour touch screen, soft menu keys and alphanumeric keypad.
- Editable test locations and user names.
- Integrated thermal printer provides on-site printing of test results.
- Password protection feature.
- Multi-language.
Product Specification
Rapidox SF6 6100 Portable Gas Analyser
Product Information
The Rapidox SF6 6100 Portable is designed for controlling and monitoring the quality of SF6 in MV & HV gas insulated electrical equipment. Exceptional accuracy and stability are provided when measuring the purity of SF6 gas, through specially selected sensors. A gas output nozzle allows for the analyser to be attached to the Rapidox Gas Recovery Bag, ensuring that all sampled SF6 gas is recovered.
Internal SF6 gas pressure is recorded and logged by the analyser. All measured gases are analysed and data-logged simultaneously with only a few minutes required to achieve a stable reading.
Rapidox SF6 6100 Bench Gas Analyser
Product Information
The Rapidox SF6 6100 Portable is designed for controlling and monitoring the quality of SF6 in MV & HV gas insulated electrical equipment. Exceptional accuracy and stability are provided when measuring the purity of SF6 gas, through specially selected sensors. A gas output nozzle allows for the analyser to be attached to the Rapidox Gas Recovery Bag, ensuring that all sampled SF6 gas is recovered.
Internal SF6 gas pressure is recorded and logged by the analyser. All measured gases are analysed and data-logged simultaneously with only a few minutes required to achieve a stable reading.
Make Your Enquiry
Fill out the form below to make your product enquiry. A member of our friendly team will be in contact shortly to provide exceptional support in choosing your product.
FAQs
Rapidox gas analysers can be used within a wide range of applications. Please visit our application page for further details. If you are unsure of which Rapidox is most appropriate for your application, then please contact Cambridge Sensotec. Our experienced sales team will be happy to assess your gas analysis requirements and advise on a suitable solution.
Cambridge Sensotec prides ourselves on our personal after-sales service. We are here to help you with any technical or application queries that you may have at any point after purchasing your Rapidox. In addition, we offer the Team Viewer service that enables remote diagnostics for a rapid response, should you experience technical difficulties with your Rapidox.
It may be possible to rent a Rapidox analyser, dependent on availability. Please contact Cambridge Sensotec for further details.
All calibrated Rapidox analysers are accompanied by an authenticated calibration certificate. This is signed by our Head of Quality Control and includes details of the sensor signal, test gas concentration, reading and deviation values. Further details note the specific Rapidox serial number and calibration configuration file. As part of the company’s ISO 9001 standards, all calibration data is recorded for the purposes of sending calibration reminders or for the reissue of lost calibration certificates. Please contact Cambridge Sensotec for further details.
It is recommended that gas analysers are re-calibrated every twelve months as a minimum and ideally every six months, to verify that the gas sensors are responding correctly and to improve measurement accuracy, consistency and reliability. Cambridge Sensotec offers a full calibration service (see the After Sales page on the left hand side) for a range of gas analysis and detection equipment, in addition to a variety of calibration gases.
All Rapidox gas analysers are manufactured within the Cambridge Sensotec facilities in Cambridgeshire, UK.
The static range of Rapidox analysers (1100, 2100, 3100 and 7100) are fitted with RS232 communication outputs as standard. There is the option of configuring RS485 communications at the point of order, which will enable the Rapidox to be used with a PLC or other control devices.
